Sunday, March 30, 2014

upper front done

Yesterday we prepared for today's laminate, I was thinking to do the upper half in one shot but decided not to do so and I was glad to do only the front. It was not much laminate but it was a little tricky because you tend to slide downwards to the yust done laminate. I did span a rope where I could hold my self. Time was also limited because summertime started ;-)



Friday, March 28, 2014

after upper edge done

I did the after upper edge with just a wet layup and some peel ply, I did find the small edge to much work to do it with vacuum.

Sunday, March 23, 2014

doing some small steps before we can laminate the upper half

Yesterday we did not do so much other than put some putty on the seams. In the evening we had an presentation of our project with five other builders and their projects at our catamaran and trimaran club. Here is a list from there websites
http://precat.nl/
http://www.catamaransafari.nl/
http://www.stukjezeilen.nl/
http://www.ikarus342000.com/DUO1000page.htm
https://sites.google.com/a/tammingas.nl/trimaran-design/

Today we did some painting and cleaning of Thrill Seeker and after that we made some round fillets in the corners and put some peel ply on it so a don't have sand so mutch.




Friday, March 21, 2014

side panels done

The foam panels arrived in the afternoon after that I started with the side panels. Tomorrow it is a short day because we have our annual multihull club meeting were have to give a presentation about our building project. I will do some seams with putty so that they will be airthide. With the entrance bulkhead placed, it started to look some thing




Saturday, March 15, 2014

Roof panels done

We had to be early out of beth to bring the trampoline of Thrill Seeker to the sailmaker and we decided to do some roof panels before we do go to the other shed to do some maintenance on Thrill Seeker. All the left roof panels were quicker in place than expected. Now we have to wait till friday when the 15mm side foam arrive.


Friday, March 14, 2014

Doing the roof

This morning I did some roof panels before we went to Thrill Seeker to do some things before it goes to the water. This time I glue the panels with PU construction clue, I think this is faster because I don't have to fill the seams. The panels are 61 cm wide.  I also ordered some 15mm for the panels where the windows will come. I don't want the windows on top of the outside but sunk in it.

Sunday, March 9, 2014

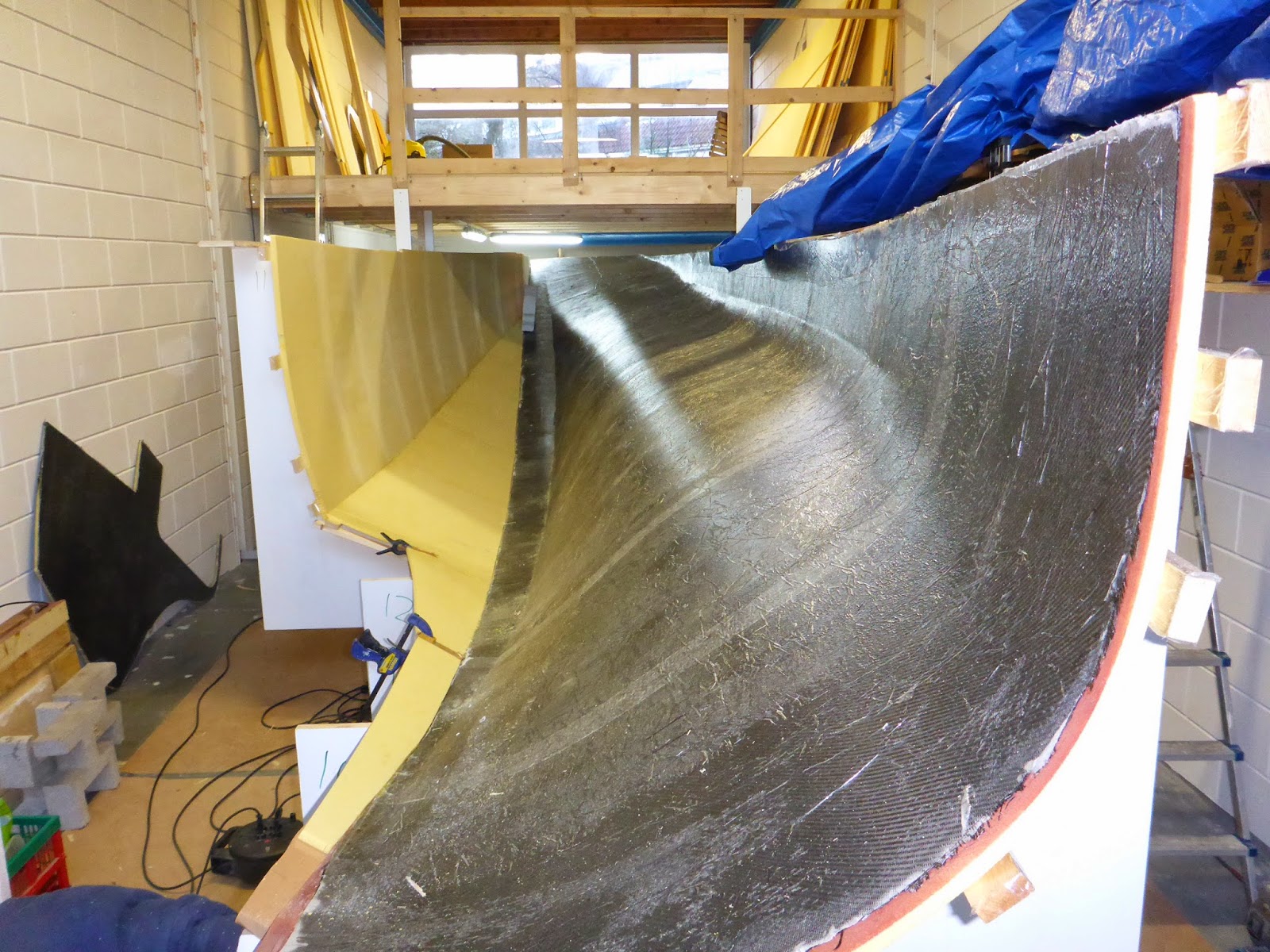

a nice result

Fetske and I unpacked the bottom half, it is always excited to see the result. I started with the upper part off the bathans after we did cut off the excess foam on the edges. My dad dropped by to see the progress and give me a hand with the bathans.




Saturday, March 8, 2014

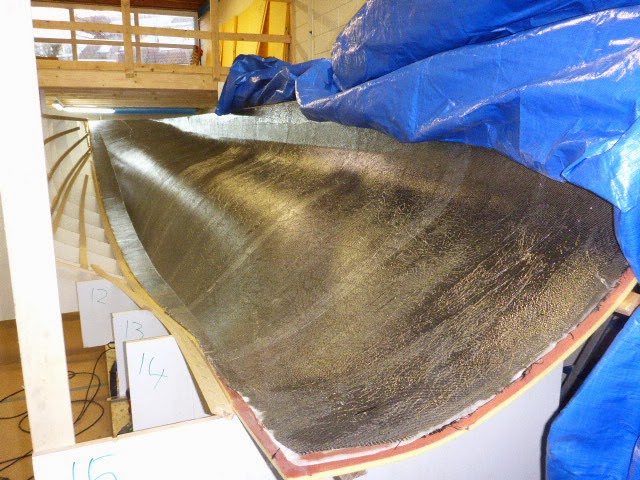

Laminate the first part of the port half

Today we started with the lamination of the first part of the port half of the main hull, it took us seven long hours of hard work from the start till when we were done. I had planned a time lapse video but when I check afterwards there were no pictures and the battery was empty. I started with a full one, so next time I check for the first pictures and shut the display. After diner we went for a look how it was going. The sail did keep it good warm, 18 grade celsius on the coldest place.




Sunday, March 2, 2014

made ready for laminating

This weekend I had to work so I had not so much time and only to prepare to do the laminating for next weekend. I sanded the remaining seems, put the tacky tape on. The vacuum bag is glued on the top.
As last we did cut the black gold ;-)
